Nittoku 망사NBC 망사











  신폴리에스텔 인쇄용 메쉬

  폴리아릴레이트 섬유 메쉬

  대전방지가공 인쇄용 메쉬










   α시리즈





   V스크린



   AS스크린



고정밀 폴리에스텔 인쇄용 메쉬

표준 폴리에스텔 인쇄용 메쉬

   폴리에스텔 인쇄용 메쉬










   L스크린



   UX스크린



   EX스크린







제품명 품명 Mesh수 지름 두께 opening Open
Area		 투과율 생산대응
cm inch μm μm μm % cm3
/㎡		 115
cm		 136
cm		 155
cm
V380 150 380 23 43 44 43 18 ○ ○ ○
V330 130 330 23 43 54 49 21 ○ ○ ○
V300 118 300 30 53 55 42 22 ○ ○ ○
V280 110 280 30 53 61 45 24 ○ ○ ○
V250 98 250 30 53 72 50 26 ○ ○ ○
V220 87 220 36 62 79 47 30 ○ ○ ○
V180 71 180 50 92 91 42 38
V160 63 160 45 74 114 51 39 ○ ○ ○
V135 53 135 55 100 133 50 50
V115 45 115 50 80 171 60 48
V100 39 100 70 119 184 52 62 ○ ○ ◎
V70 28 70 100 178 263 52 92
V50 20 50 100 170 408 65 113 ○ ○ ◎



제품명 품명 Mesh수 지름 두께 opening Open
Area		 투과율 생산대응
115 -
155cm
cm inch μm μm μm % cm3
/㎡		 115
cm		 136
cm		 155
cm


200-027/508TW
(구)508-27 2/2		 200 508 27 52 23 21 11 ◎ ○ ○
180-027/460PW
(구)460-27		 180 460 27 41 28 26 11 ◎ ◎ ◎
180-030/460TW
(구)460-30 2/2		 180 460 30 55 25 21 11
165-027/420PW
(구)420-27		 165 420 27 40 33 30 12 ◎ ◎ ◎
150-027/380PW
(구)380-27		 150 380 27 40 40 36 14
150-030/380PW
(구)380-30		 150 380 30 45 37 30 14 ◎ ◎ ◎
140-027/355PW
(구)355-27		 140 355 27 40 45 39 16
140-030/355PW
(구)355-30		 140 355 30 45 42 34 15 ◎ ◎ ◎
130-027/330PW
(구)330-27		 131 334 27 40 49 42 17     ○
130-030/330PW
(구)330-30		 131 334 30 45 46 37 16 ◎   ◎
124-027/315PW
(구)315-27		 124 315 27 40 54 44 18 ○ ○ ◎
124-030/315PW
(구)315-30		 124 315 30 45 51 40 18 ○ ○ ◎
120-030/305PW
(구)305-30		 120 305 30 46 53 41 19 ◎ ◎ ◎
120-035/305PW
(구)305-35		 120 305 35 53 48 34 18 ◎ ◎ ◎
110-035/280PW
(구)280-35		 110 280 35 53 56 38 20 ◎ ◎ ◎
100-035/255PW
(구)255-35		 100 255 35 53 65 42 22 ◎ ◎ ◎







제품명

 품명 Mesh수 지름 두께 opening Open
Area		 투과율 생산대응
115 -
155cm
cm inch μm μm μm % cm3
/㎡		 115
cm		 136
cm		 155
cm
165-033/420TW
(구)420T2/2		 165 420 33 60 27 21 12 ◎ ○ ◎
150-033/380PW
(구)380M		 150 380 33 48 34 26 12 ◎ ◎ ◎
150-035/380TW
(구)380T2/2		 150 380 35 64 32 23 15 ◎
140-035/355PW
(구)355T		 140 355 35 53 37 26 14 ◎ ◎ ◎
140-035/355TW
(구)355T2/1		 140 355 35 61 37 26 16 ◎
130-035/330PW
(구)330T		 130 330 35 53 42 30 16 ◎
120-033/305PW
(구)305M		 120 305 33 50 50 36 18 ◎ ◎ ◎
120-035/305PW
(구)305T		 120 305 35 53 48 34 18 ◎ ◎ ◎
118-040/300PW
(구)305HD		 118 300 40 62 45 28 17 ○ ○ ○
110-035/280PW
(구)280T		 110 280 35 53 56 38 20 ◎ ◎ ◎
106-040/270PW
(구)270HD		 106 270 40 60 54 33 20 ◎ ◎ ◎
100-035/255PW
(구)255S		 100 255 35 53 65 42 22 ◎ ◎ ◎
100-040/255PW
(구)255T		 100 255 40 60 60 36 21 ◎ ◎ ◎
90-040/230PW
(구)230S		 90 230 40 60 70 41 24 ◎ ○ ◎
90-045/230PW
(구)230T		 90 230 45 68 65 35 24 ◎ ◎ ◎
89-048/225PW
(구)225H		 88 225 48 75 65 33 25 ◎ ○ ○
89-055/225TW
(구)225HD2/1		 88 225 55 91 58 26 24 ◎ ○ ○
79-045/200PW
(구)200S		 79 200 45 68 82 42 28 ◎ ◎ ◎
79-048/200PW
(구)200M		 79 200 48 75 79 39 29 ◎ ◎ ◎
79-055/200PW
(구)200T		 79 200 55 88 72 32 28 ◎ ◎ ◎
71-045/180PW
(구)180S		 71 180 45 70 96 46 32 ◎
71-048/180PW
(구)180M		 71 180 48 76 93 44 33 ◎ ◎ ◎
71-055/180PW
(구)180T		 71 180 55 88 86 37 33 ◎ ○ ◎
63-048/160PW
(구)160M		 63 160 48 80 111 49 39
63-063/160PW
(구)160H		 63 160 63 105 96 36 38
59-045/150PW
(구)150S		 59 150 45 72 124 54 39 ◎
59-048/150PW
(구)150M		 59 150 48 76 121 51 39 ◎   ◎
59-055/150PW
(구)150T		 59 150 55 88 114 46 40 ◎ ◎ ◎
59-063/150PW
(구)150H		 59 150 63 105 106 39 41
55-063/140PW
(구)140H		 55 140 63 105 118 43 45
53-045/135PW
(구)135S		 53 135 45 73 143 58 42
53-048/135PW
(구)135M		 53 135 48 79 140 55 44
53-055/135PW
(구)135T		 53 135 55 95 133 50 48 ◎   ◎
49-071/125PW
(구)125H		 49 125 71 116 132 42 49
47-045/120PW
(구)120S		 47 120 45 73 167 62 45 ◎
47-048/120PW
(구)120MS		 47 120 48 80 164 60 48
47-055/120PW
(구)120M		 47 120 55 95 157 55 52 ◎   ◎
47-063/120PW
(구)120T		 47 120 63 105 149 49 52 ○ ○ ○
43-080/110PW
(구)110HD		 43 110 80 132 151 43 56 ○ ○ ○
39-055/100PW
(구)100S		 39 100 55 95 199 61 58 ◎   ○
39-071/100PW
(구)100T		 39 100 71 122 183 52 63 ◎ ◎ ◎
39-080/100PW
(구)100H		 39 100 80 134 174 47 63
35-071/90PW
(구)90S		 35 90 71 125 211 56 70 ◎
35-080/90PW
(구)90T		 35 90 80 137 202 51 70 ◎
31-071/80PW
(구)80S		 31 80 71 125 247 60 75 ◎   ◎
31-100/80PW
(구)80T		 31 80 100 170 218 47 80 ◎   ◎
27-071/70PW
(구)70S		 27 70 71 125 292 65 81 ◎   ◎
27-125/70PW
(구)70HD		 27 70 125 240 238 43 103
24-125/60PW
(구)60T		 24 60 125 230 298 50 114
24-150/60PW
(구)60HD		 24 60 150 260 273 42 108





제품명 품명 Mesh수 지름 두께 opening Open
Area		 투과율 생산대응
115 -
155cm
cm inch μm μm μm % cm3
/㎡		 115
cm		 136
cm		 155
cm
200-030/508TW
(구)508Ｔ2/2		 200 508 30 60 20 16 10 ◎
180-030/460TW
(구)460S2/2		 180 460 30 60 25 21 13 ◎

165-030/420PW
(구)420S

 165 420 30 51 30 25 13
165-035/420TW
(구)420T2/2		 165 420 35 70 25 18 12 ◎
150-030/380PW
(구)380S		 150 380 30 55 37 30 17
150-035/380TW
(구)380T2/2		 150 380 35 68 32 23 15 ◎
140-030/355PW
(구)355S		 140 355 30 52 42 34 18
140-035/355TW
(구)355T2/1		 140 355 35 66 37 26 17 ◎
130-030/330PW
(구)330S		 130 330 30 50 47 37 19
130-035/330TW
(구)330T2/1		 130 330 35 66 42 30 20 ◎
120-030/305PW
(구)305S		 120 305 30 53 53 41 22 ◎
120-035/305PW
(구)305T		 120 305 35 60 48 34 20 ◎   ○
106-035/270PW
(구)270T		 106 270 35 60 59 39 24 ◎   ○
100-043/255PW
(구)255HD		 100 255 43 75 57 32 24 ◎   ○
90-043/230PW
(구)230T		 90 230 43 75 67 37 28 ◎   ○
79-050/200PW
(구)200HD		 79 200 50 86 77 37 32 ◎   ○
69-050/175PW
(구)175T		 69 175 50 87 95 43 37 ◎   ○
59-061/150PW
(구)150T		 59 150 61 106 108 41 43 ◎ ○
49-070/125PW
(구)125T		 49 125 70 121 133 43 52 ◎   ○
43-070/110PW
(구)110S		 43 110 70 121 161 49 59 ◎   ○





제품명 품명 Mesh수 지름 두께 opening Open
Area		 투과율 생산대응
inch μm μm μm % cm3
/㎡		 115
cm
TB70 70 125 230 238 43 99 ◎
TB60 60 150 280 273 42 117 ◎
TB50 50 200 380 308 37 140 ◎
TB40 40 200 400 435 47 188 ◎
TB30 30 250 500 597 50 248 ◎
TB20 20 320 630 950 56 353 ◎
TB15 15 410 820 1,404 60 491 ◎







      bullet_28.gif α시리즈 제품의 자리 매김

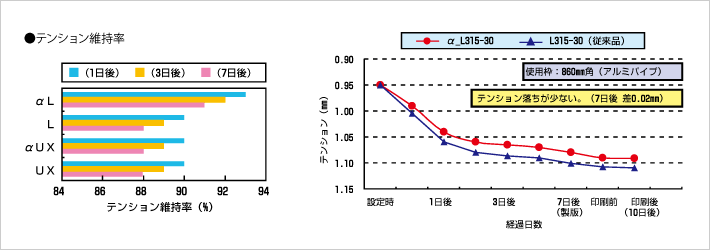

     bullet_28.gif텐션 유지율 UP!





    bullet_28.gif유제 밀착성 UP!

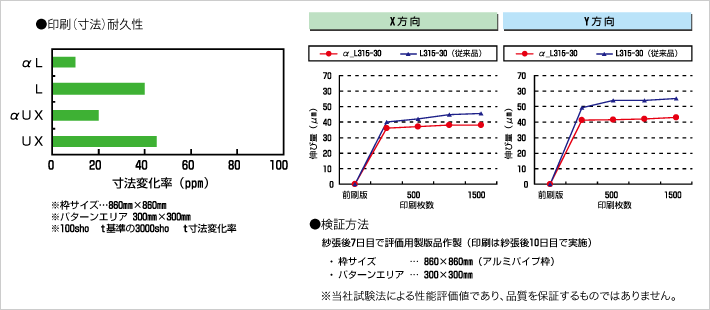

    bullet_28.gif인쇄 치수 정도 UP!



   bullet_28.gif인쇄 내구성 UP!
